No Anchor Hole丨RawForm UHPC Concrete Wall Panel丨Fair Faced Decorative Concrete
/ Panels
-We will finish the production within 15 days of receiving the order
-All products will be packed in wooden crates
-Secure packaging for each panel
-Palletized delivery
-Global door to door shipping
-Clean with neutral detergent
-Use wax conditioner or self-polishing cleaner
-Avoid acidic corrosive liquids
-Reinforce the seal within 10 years
- Keep in a dry, clean space in the original packaging
- Panels should be kept in a horizontal way

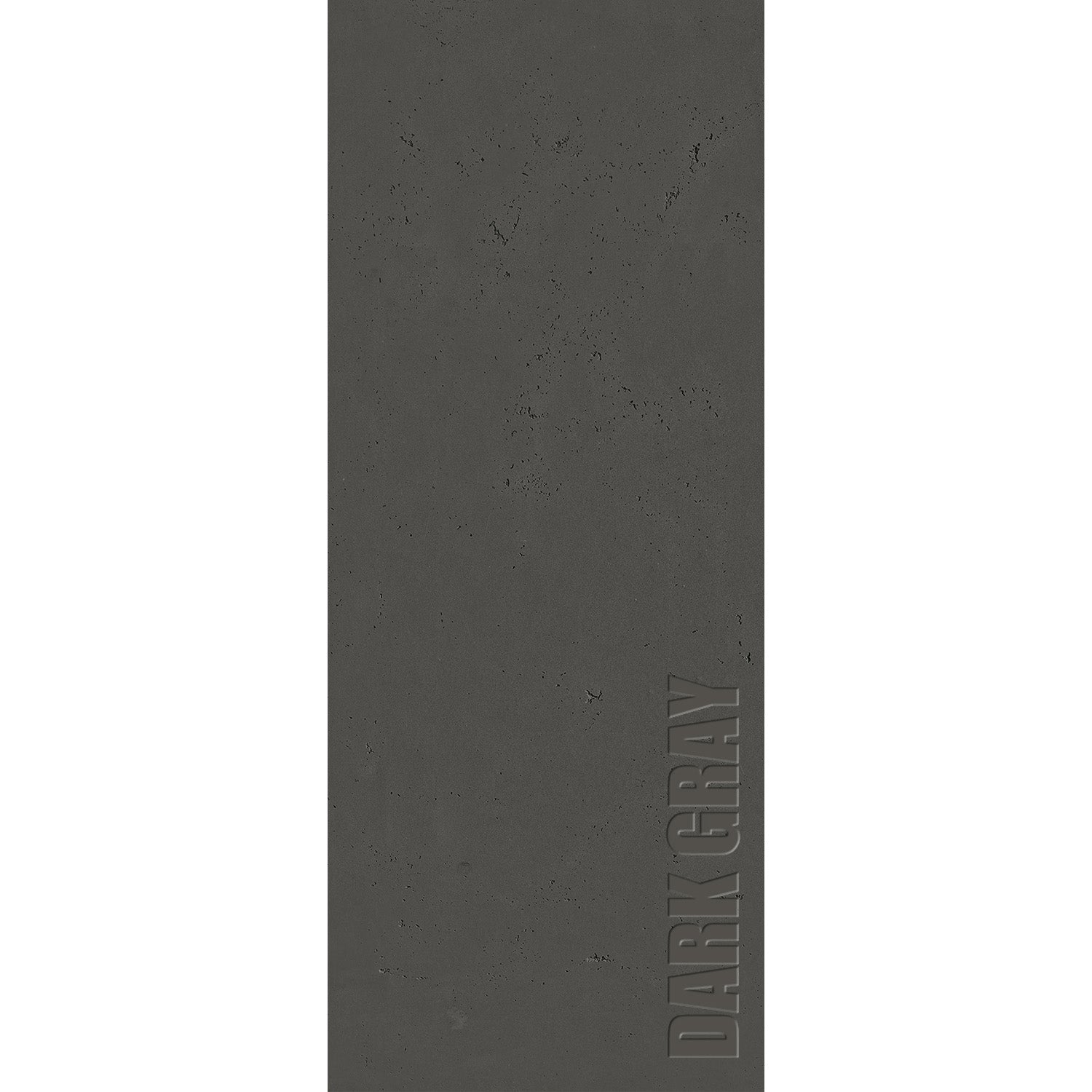

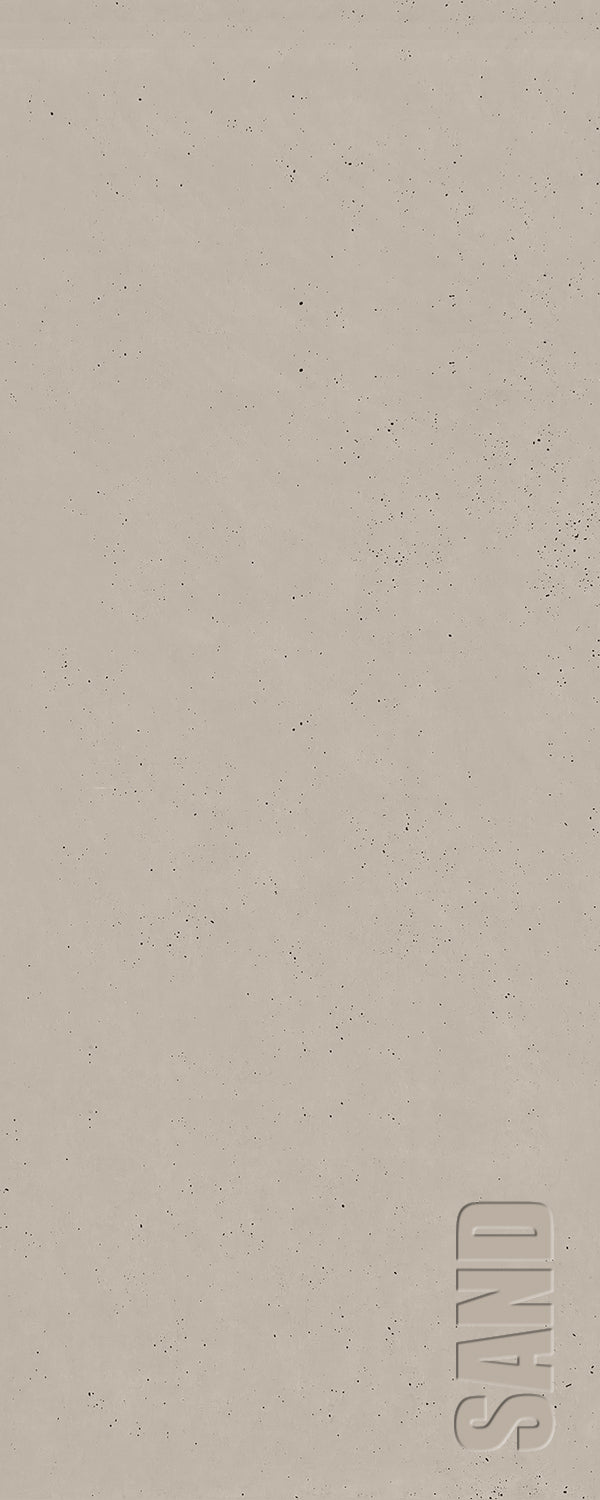

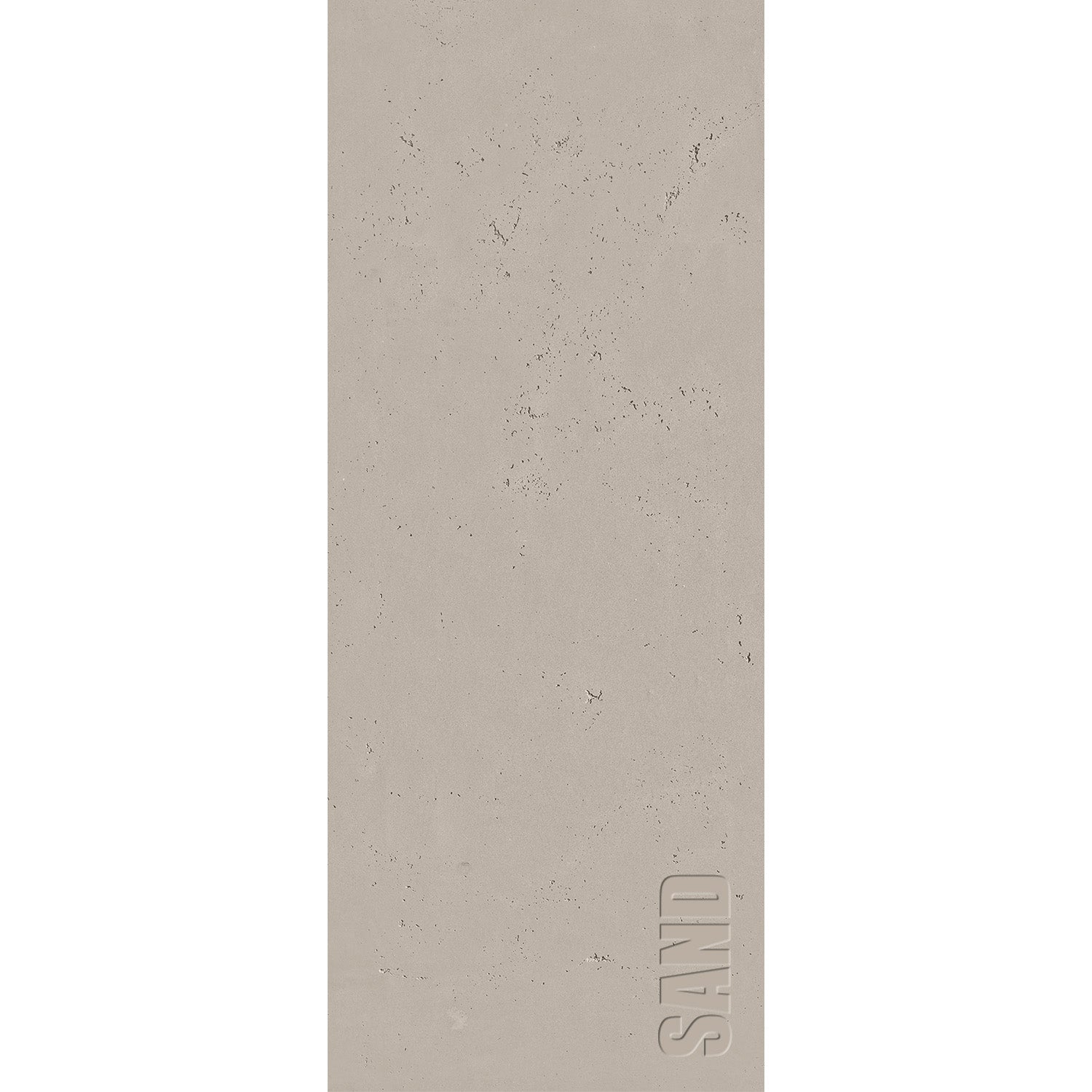

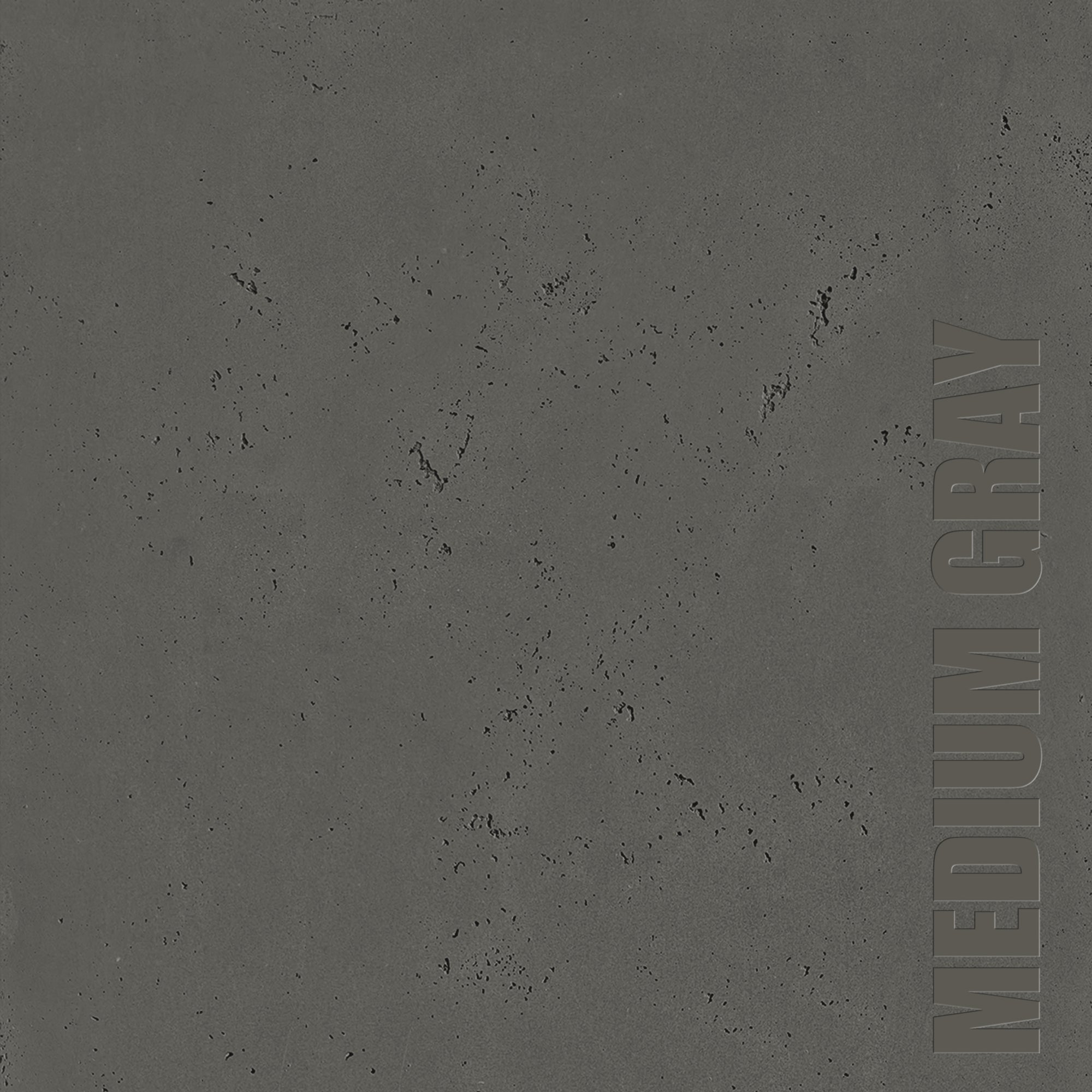

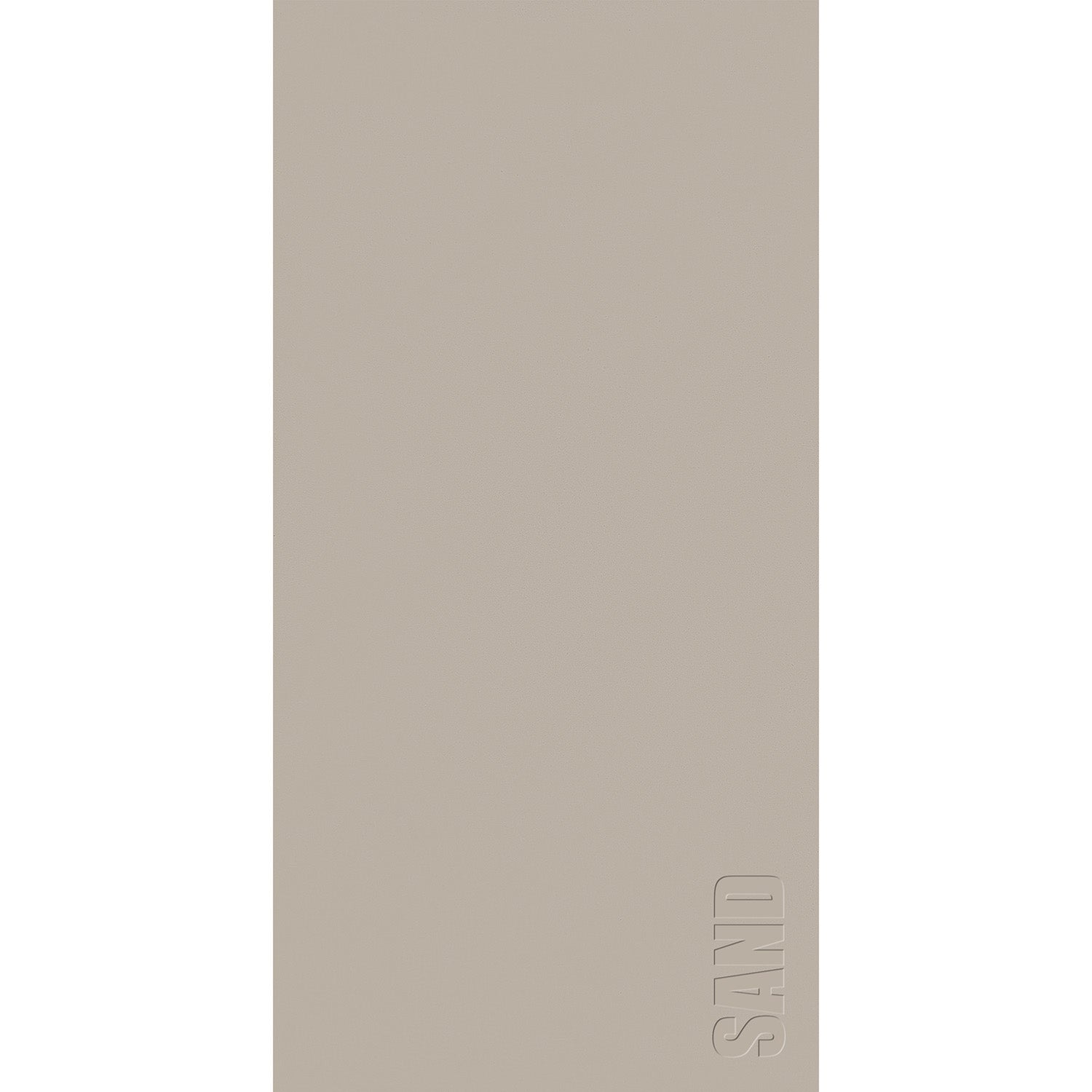

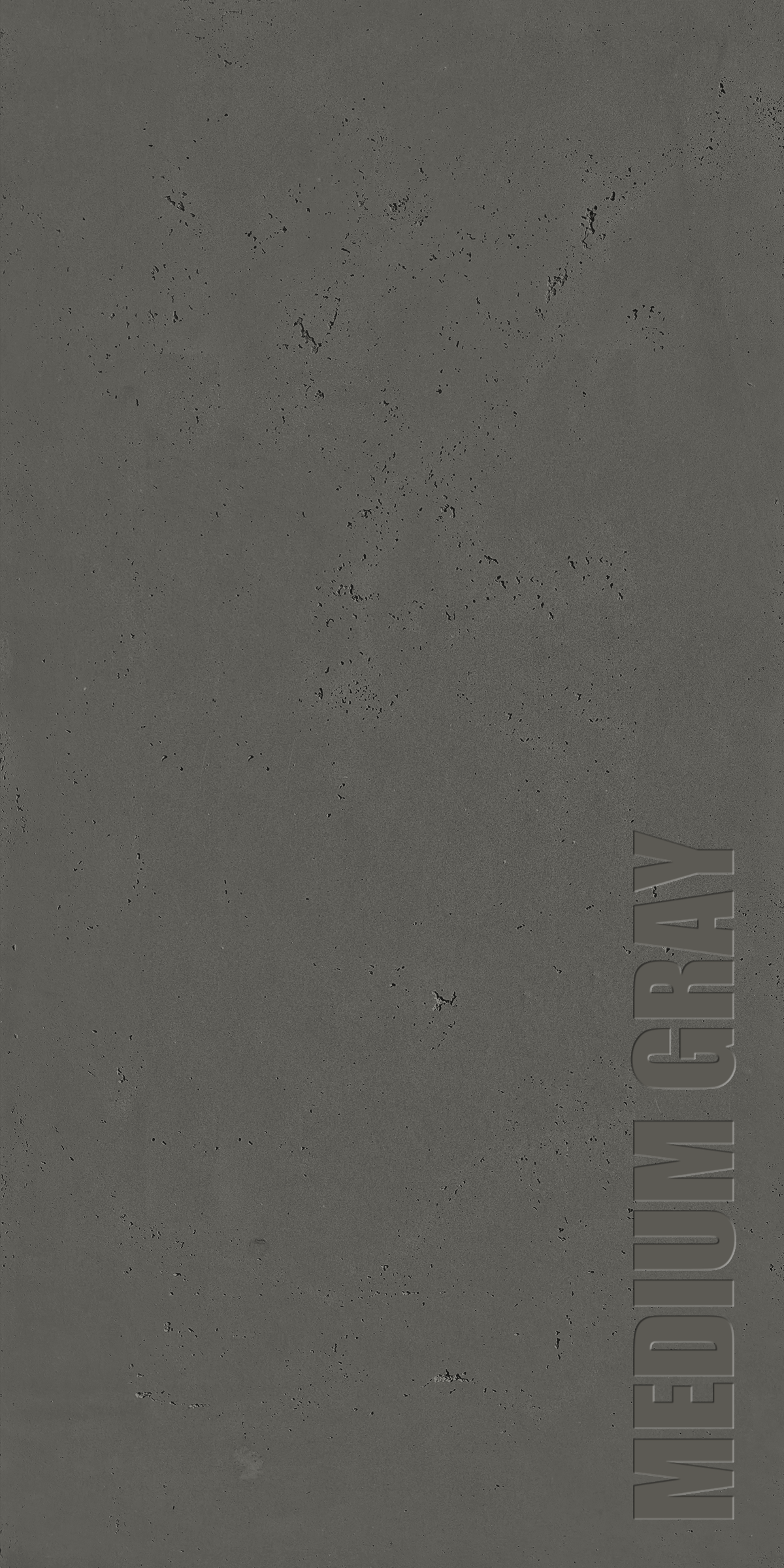

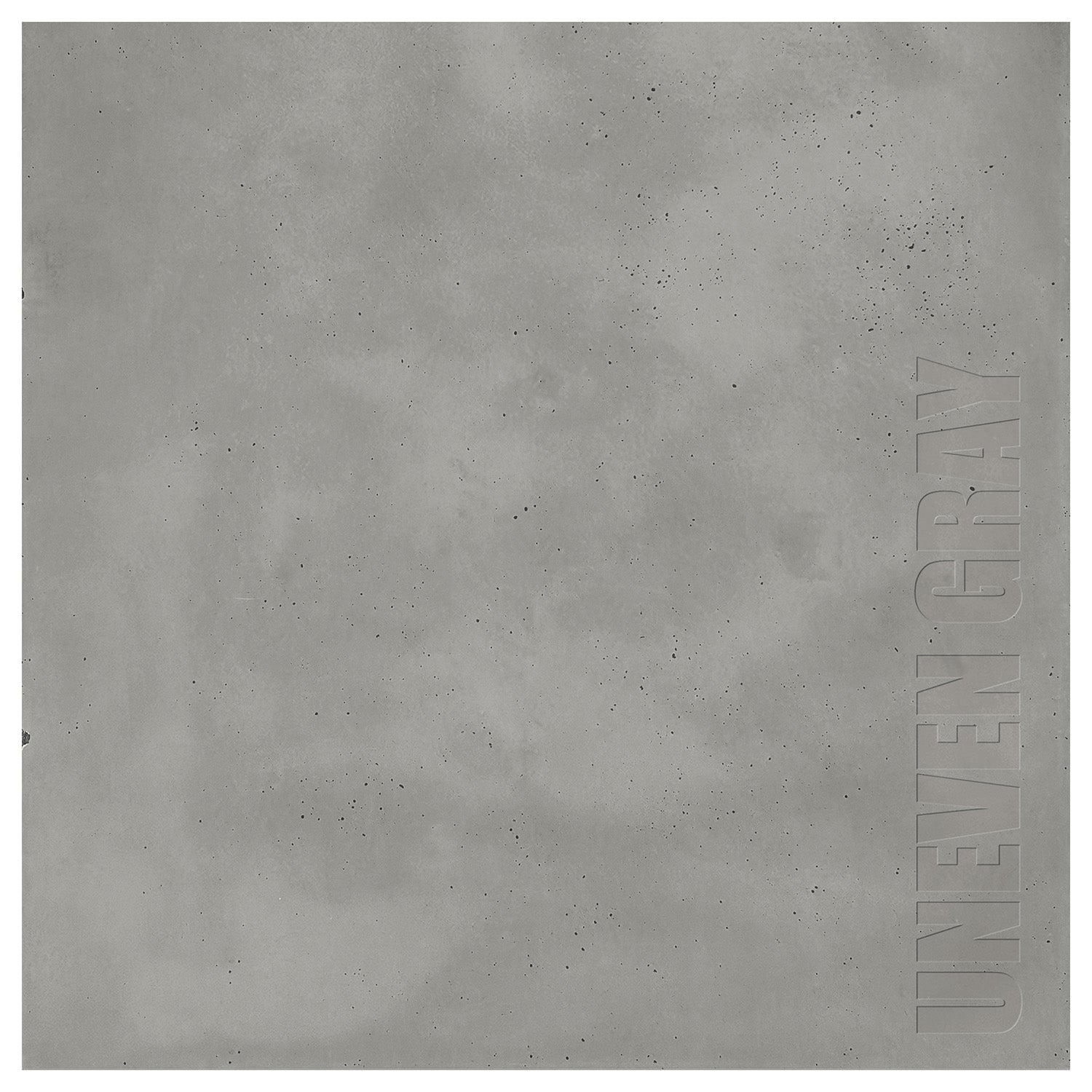

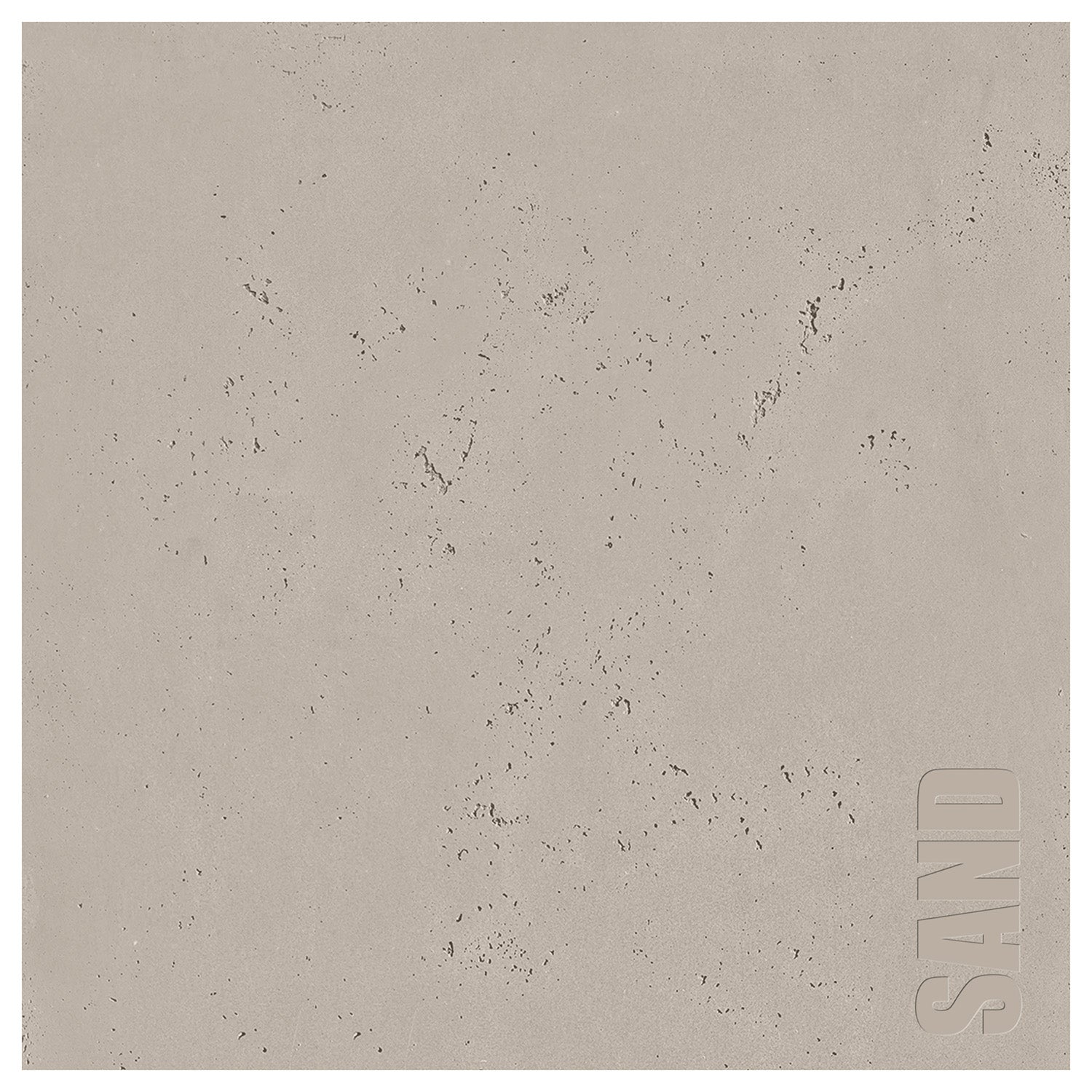

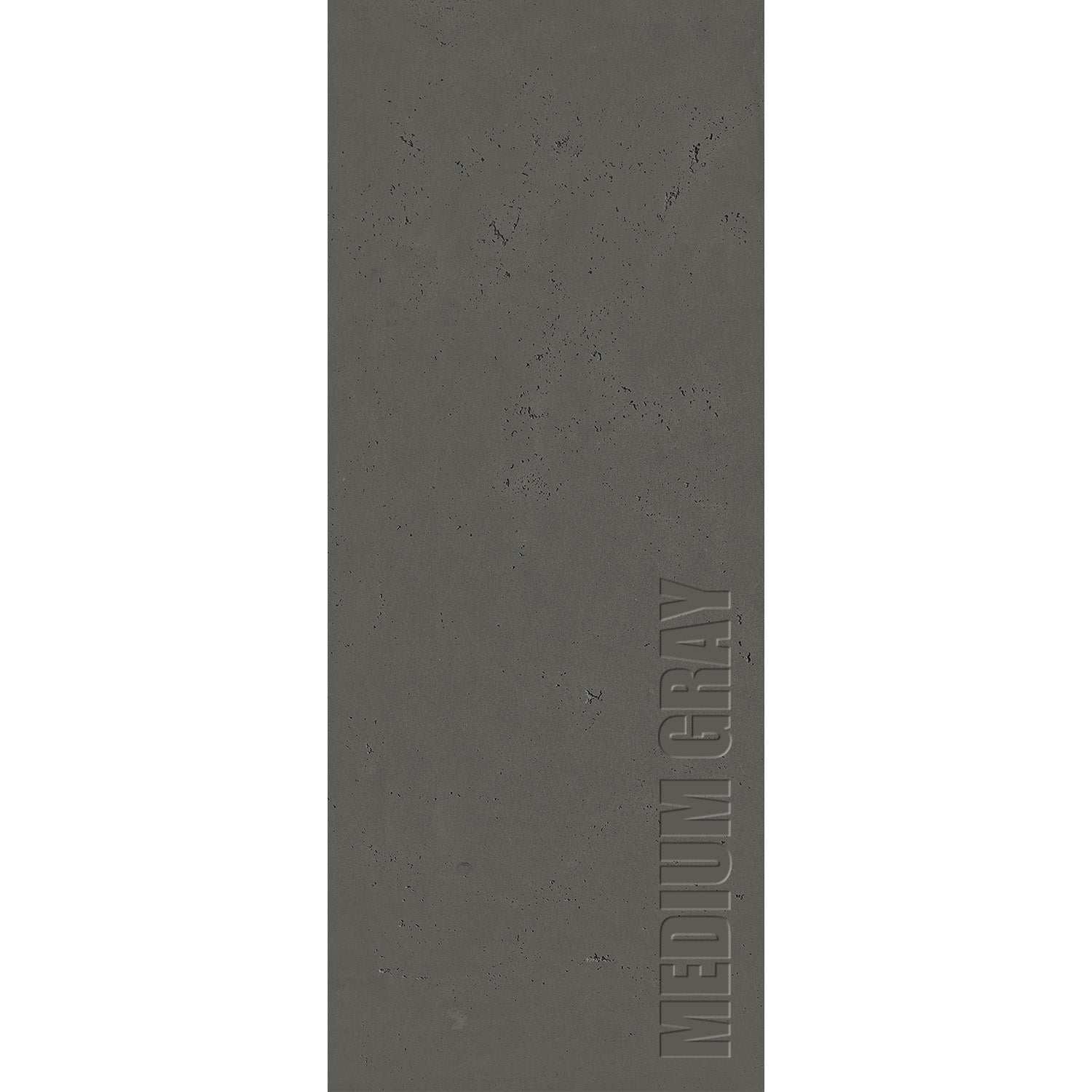

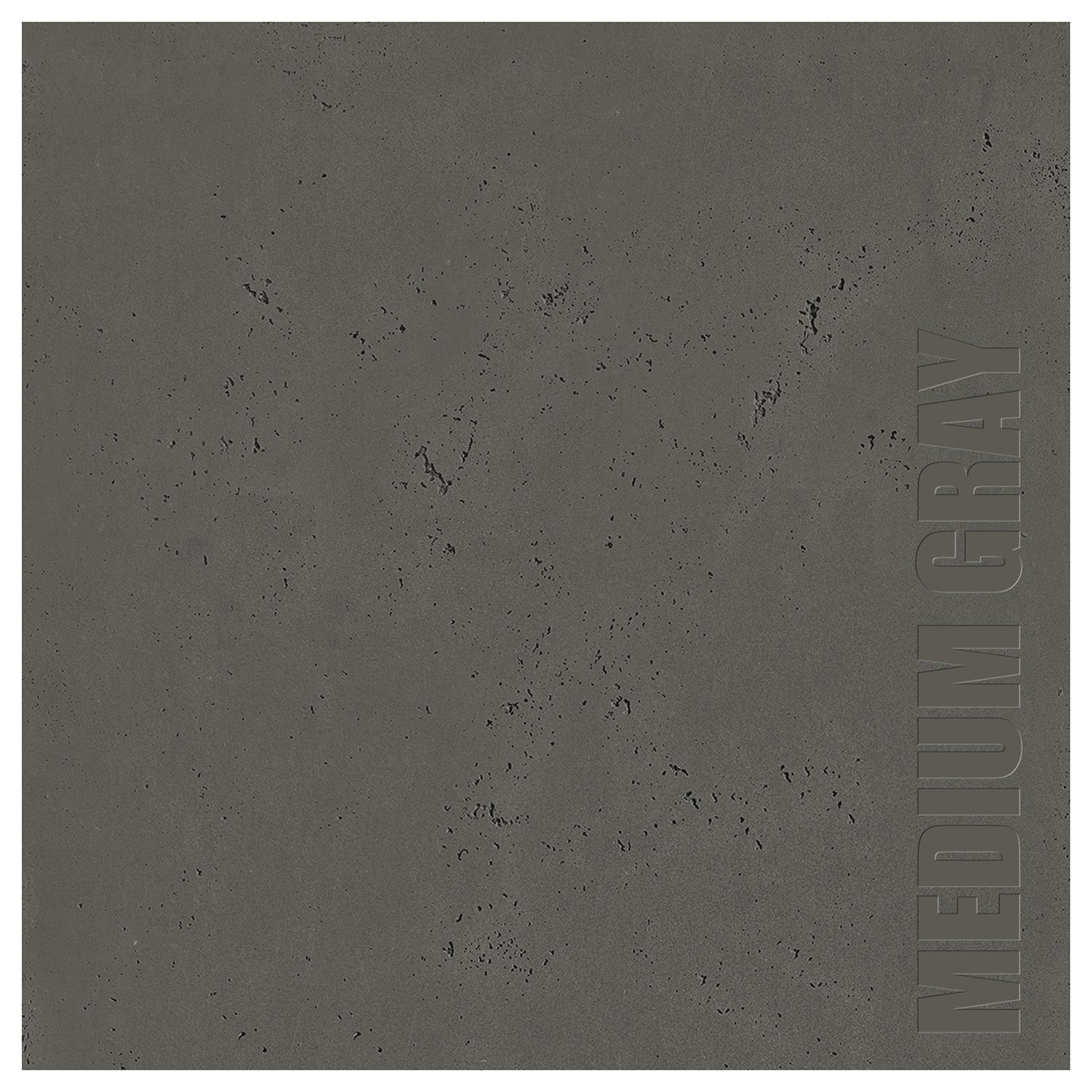

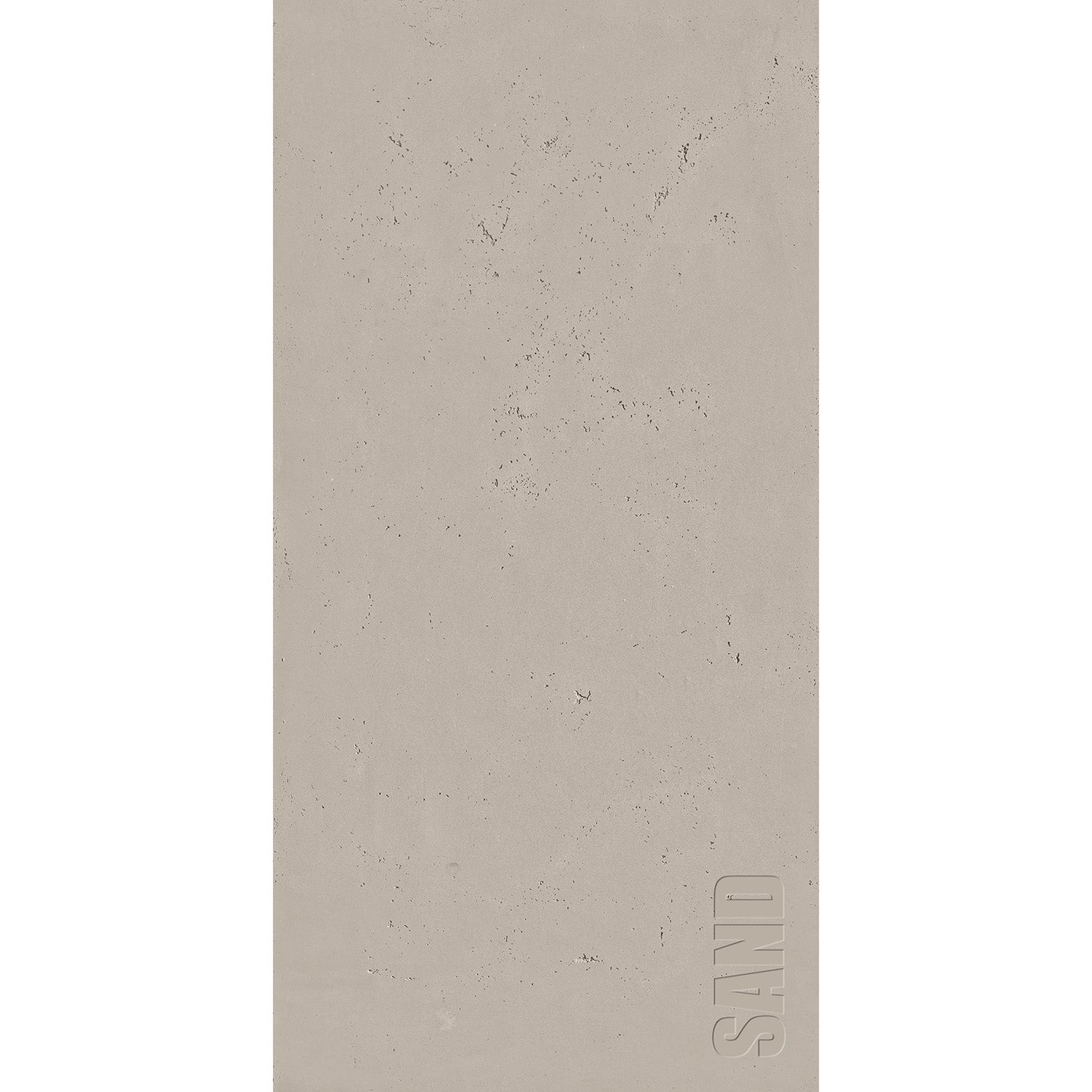

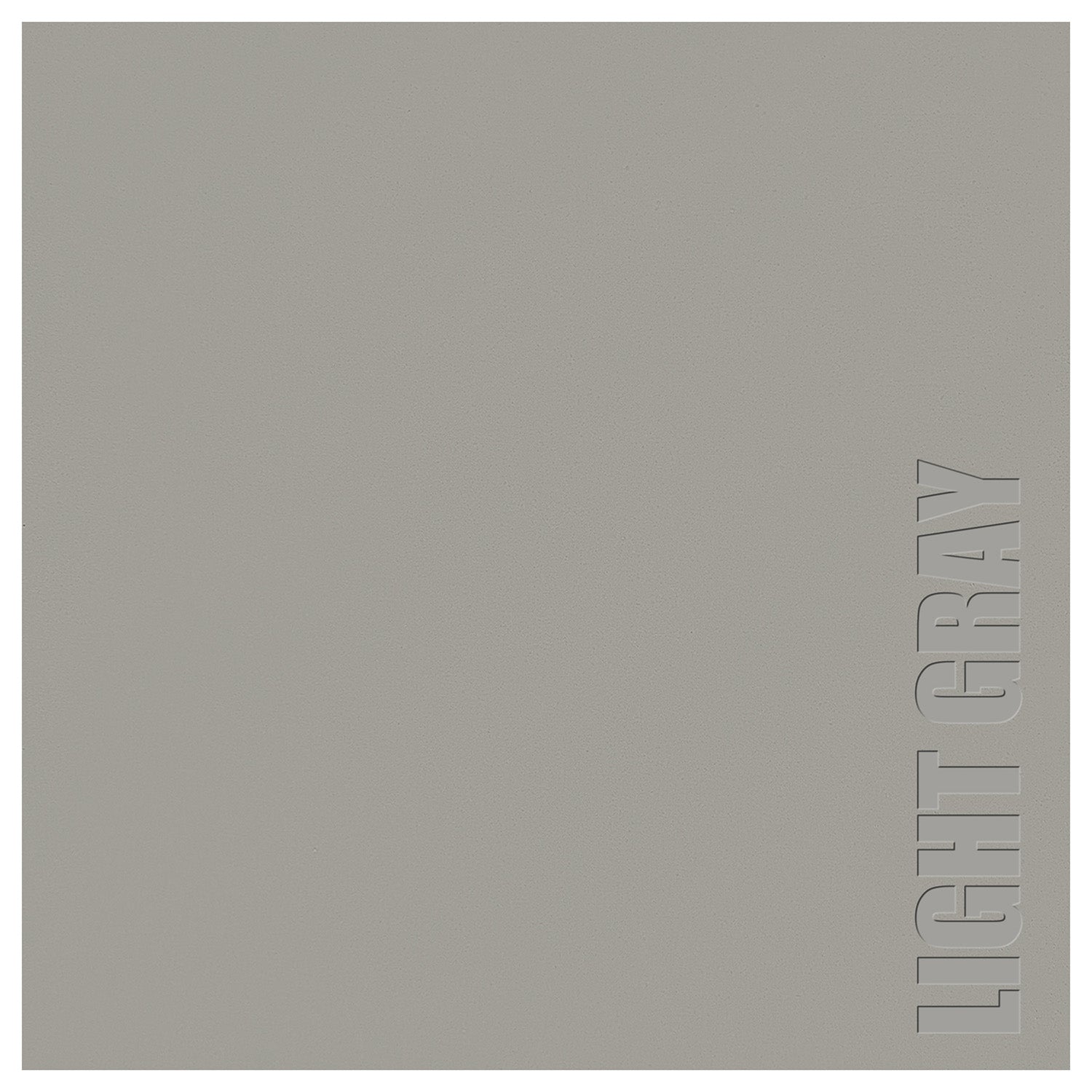

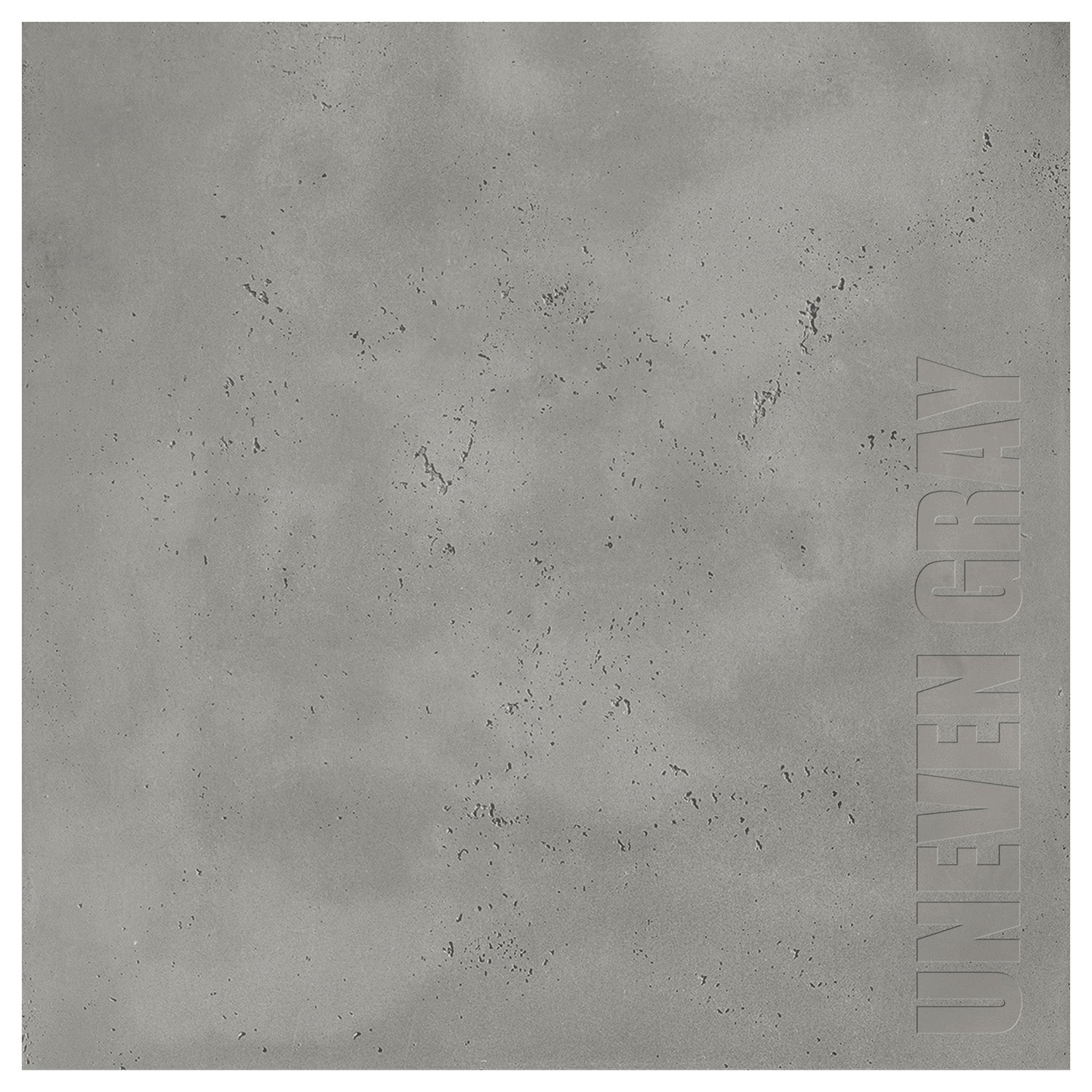

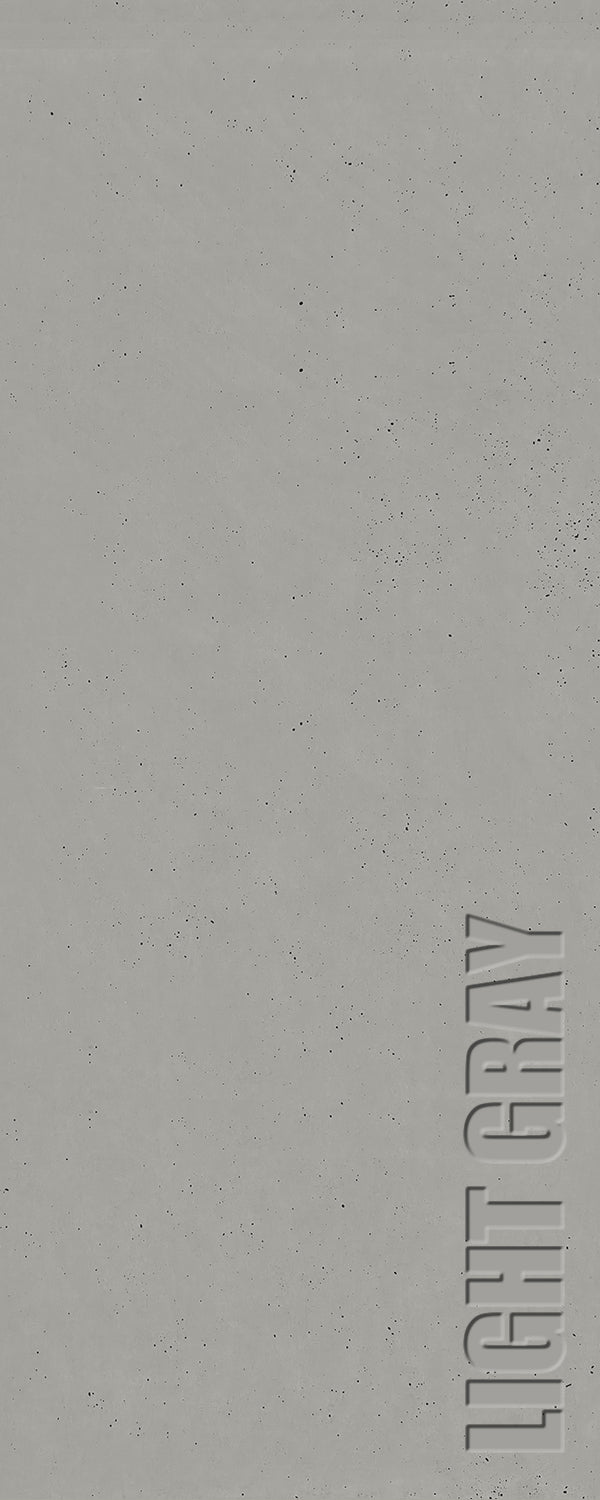

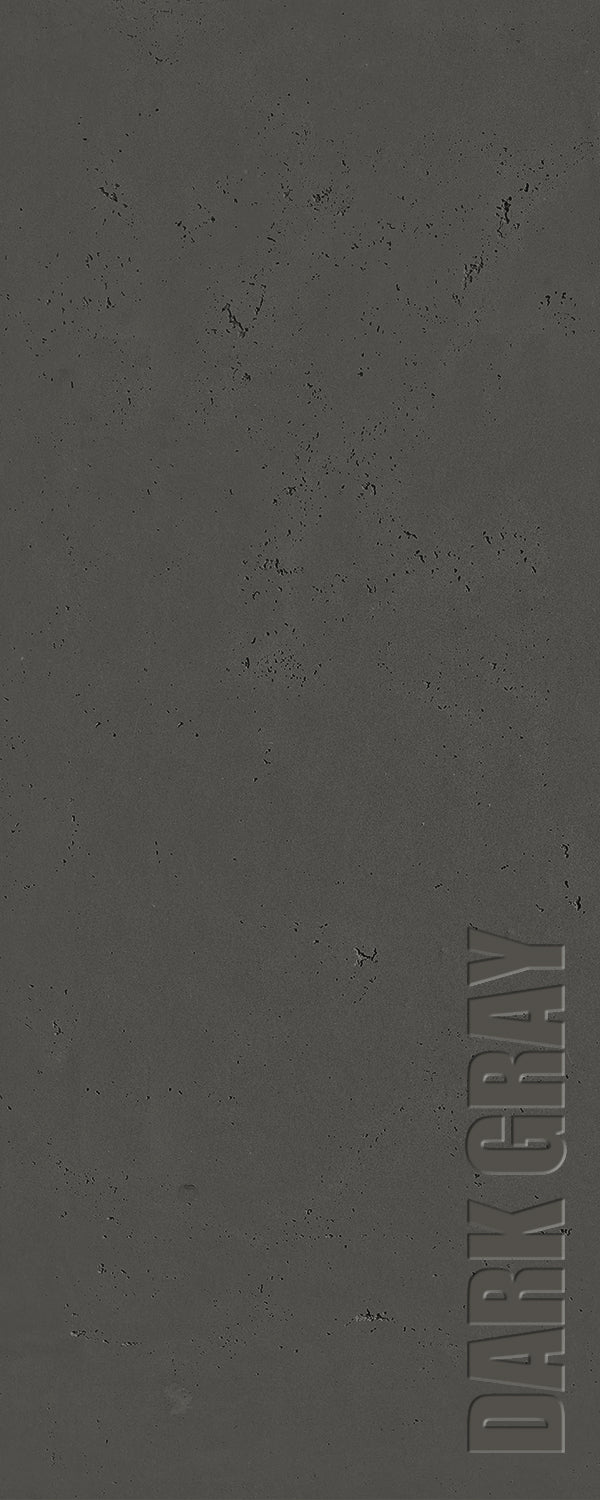

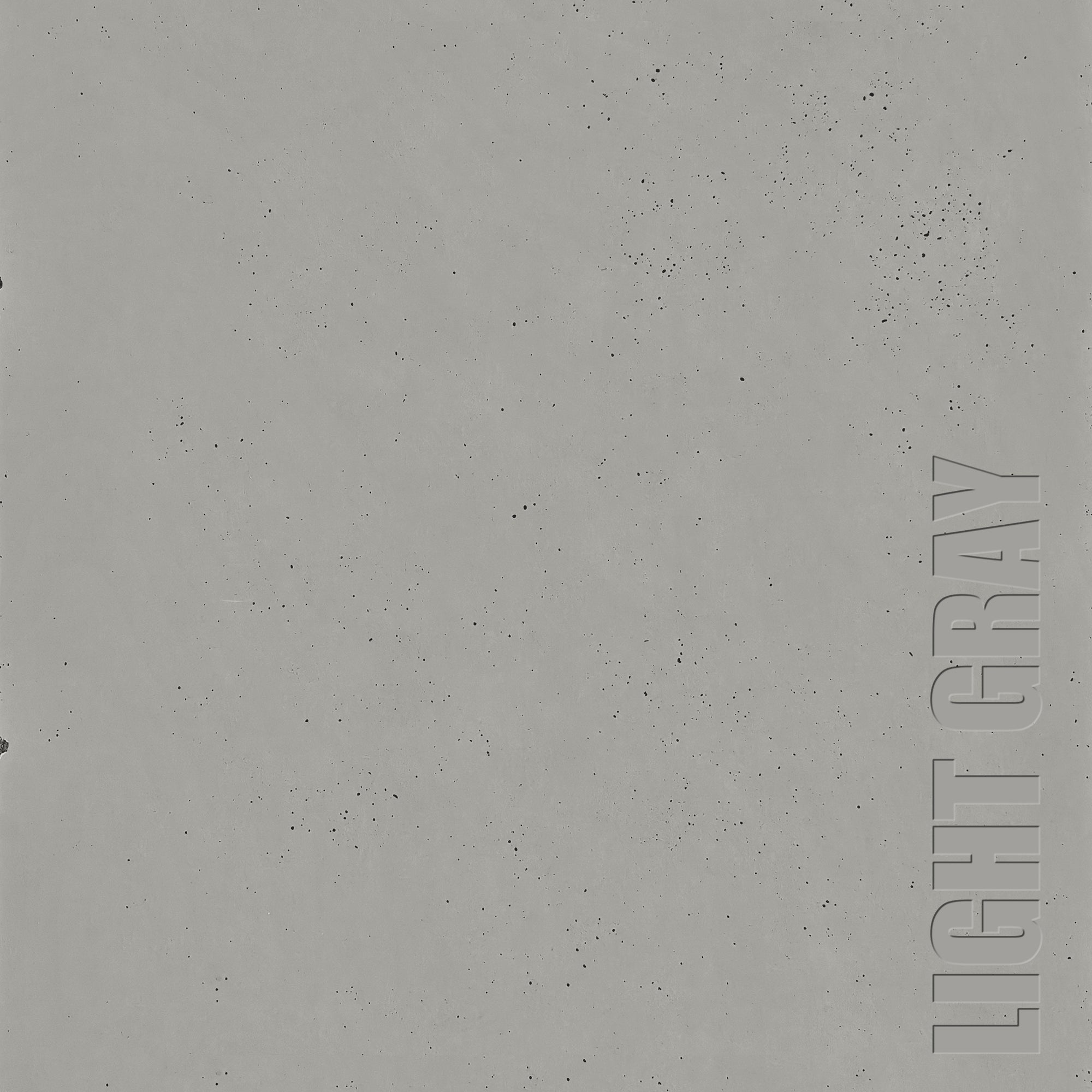

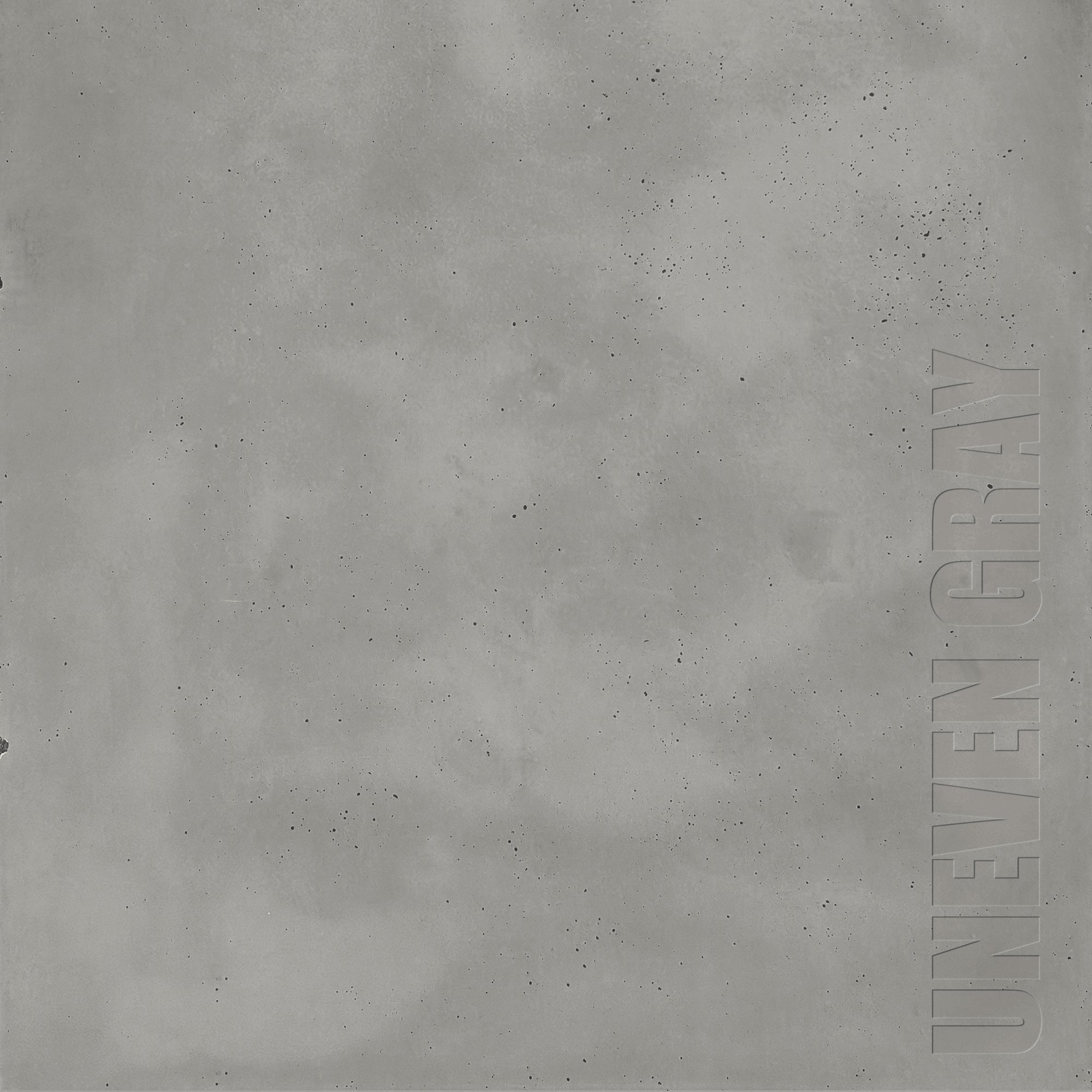

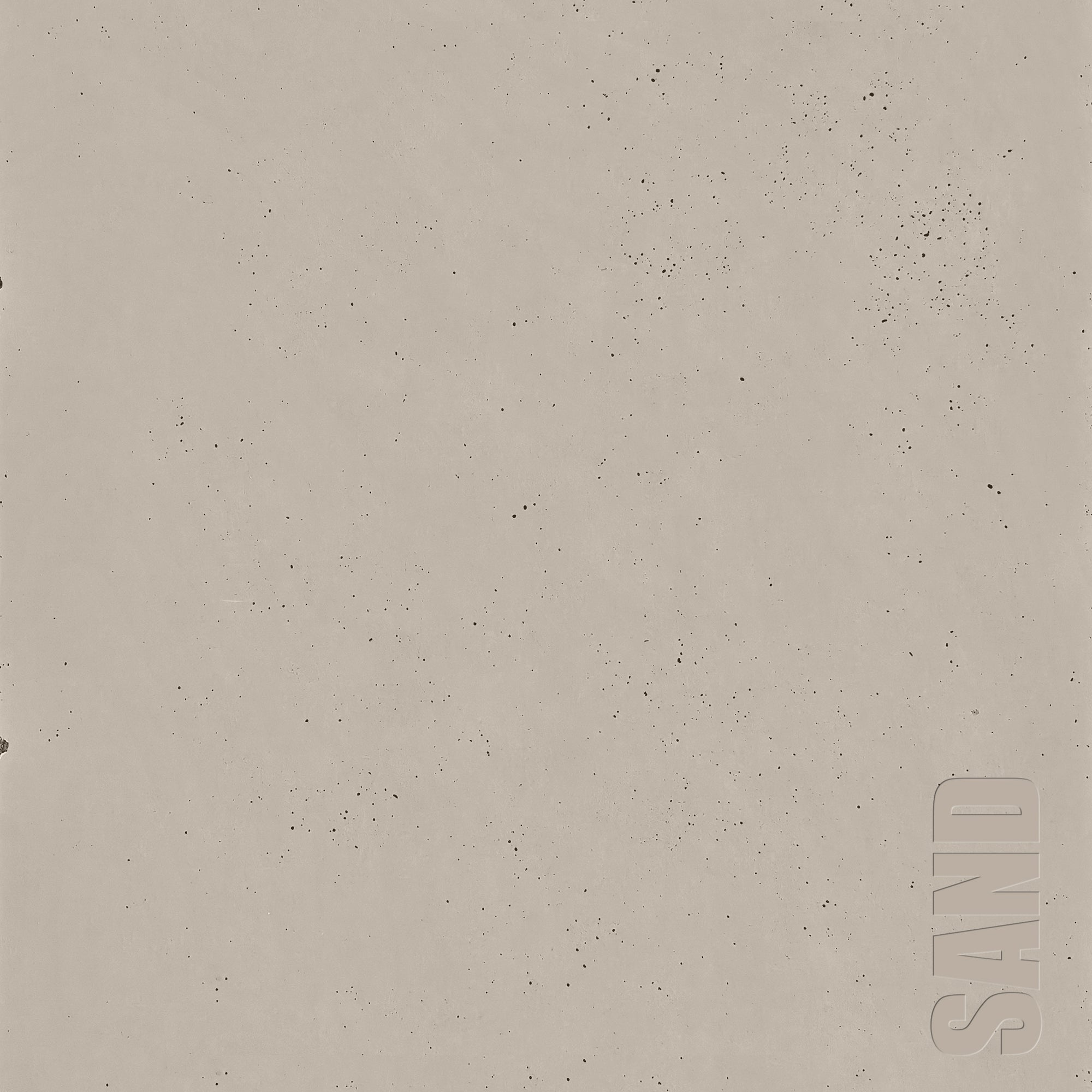

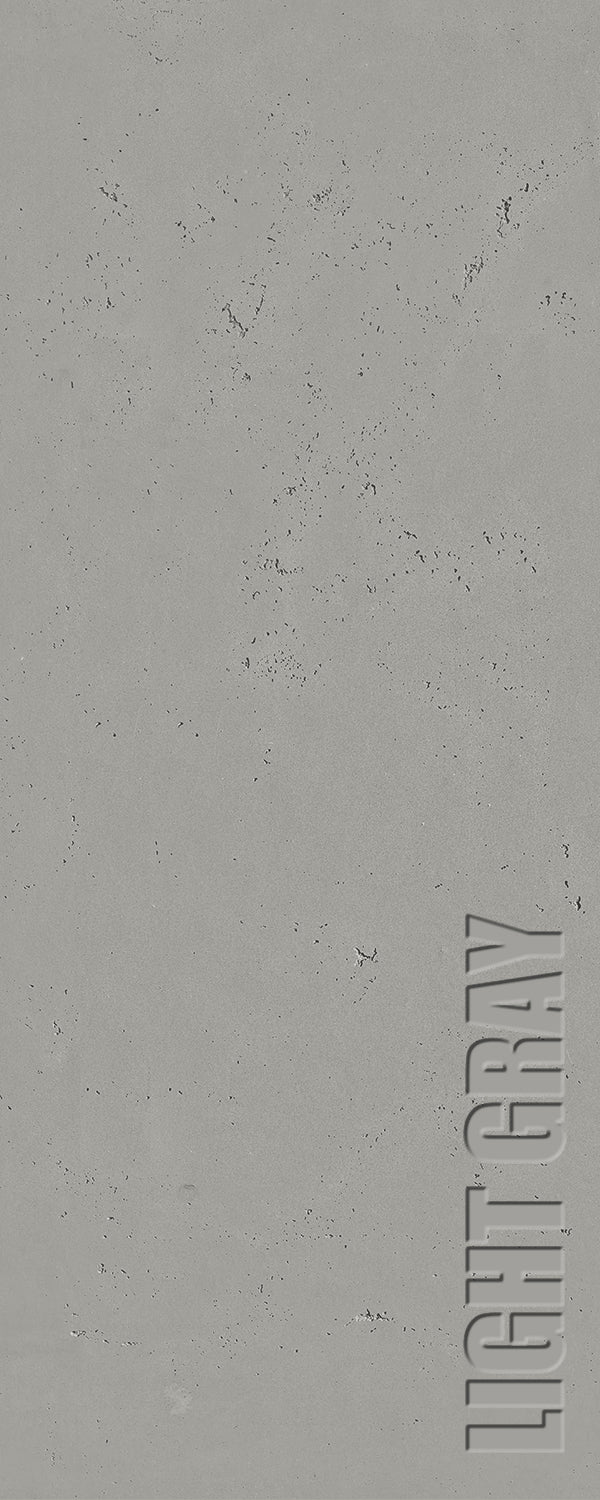

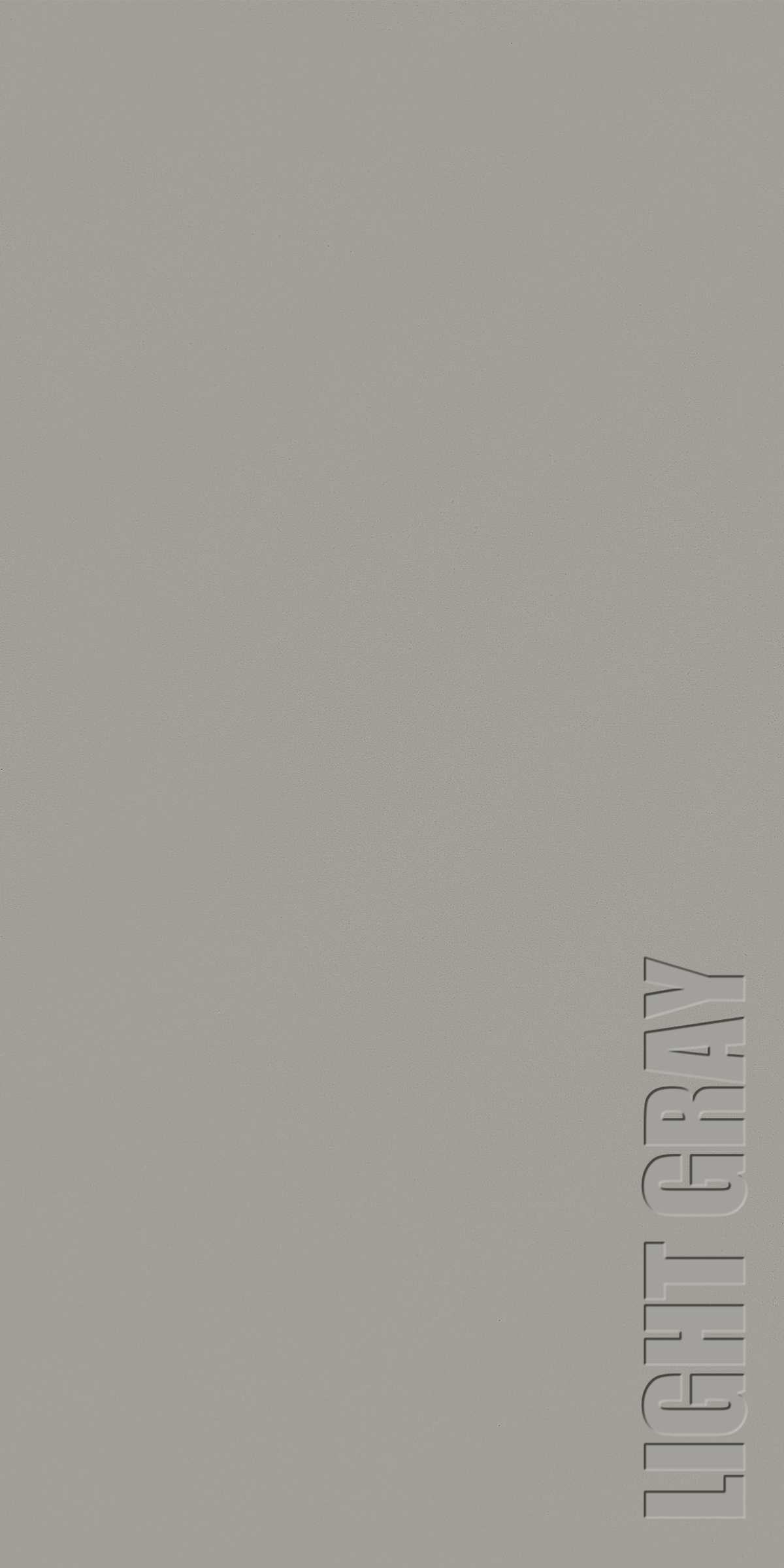

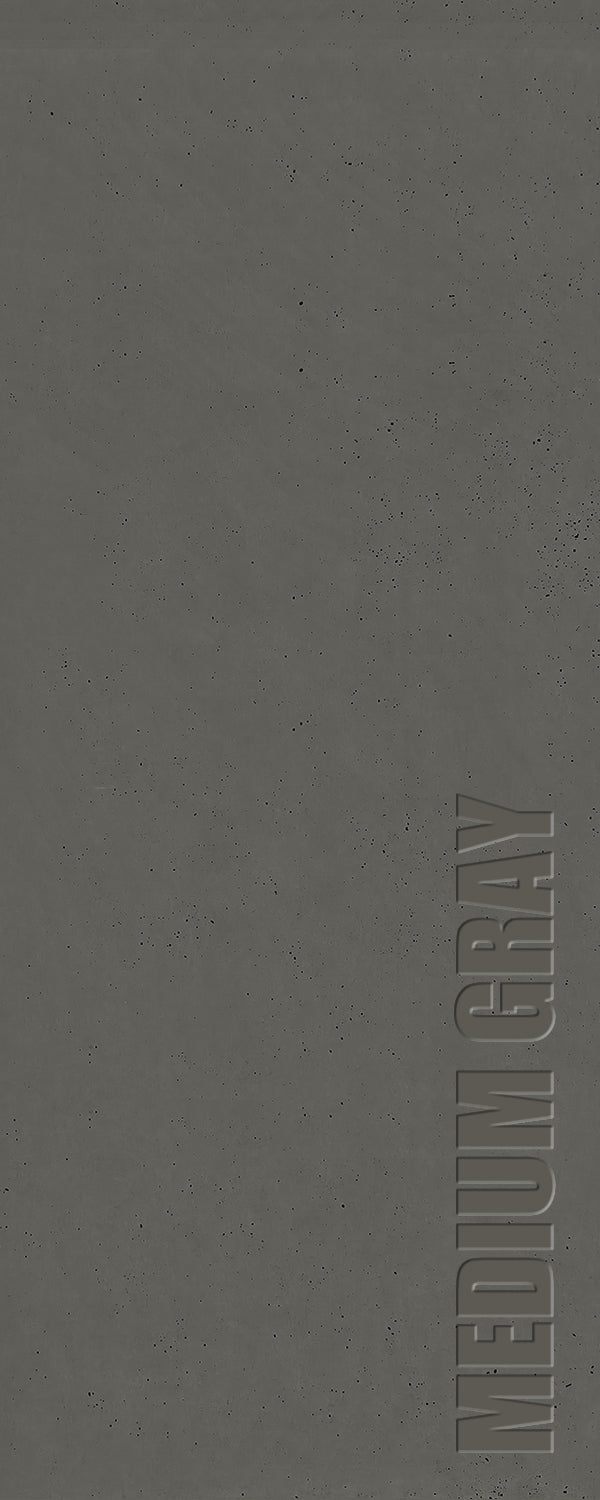

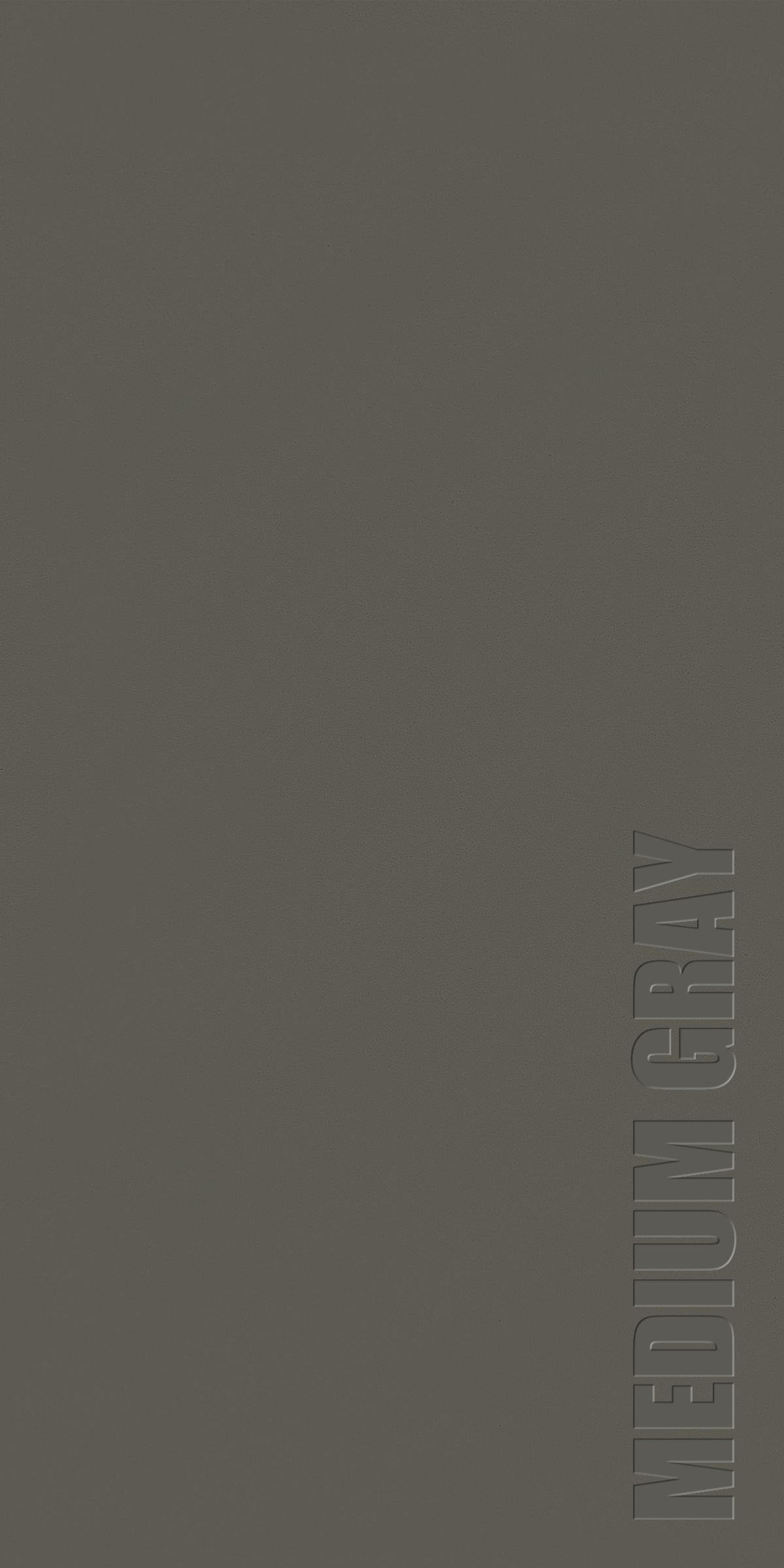

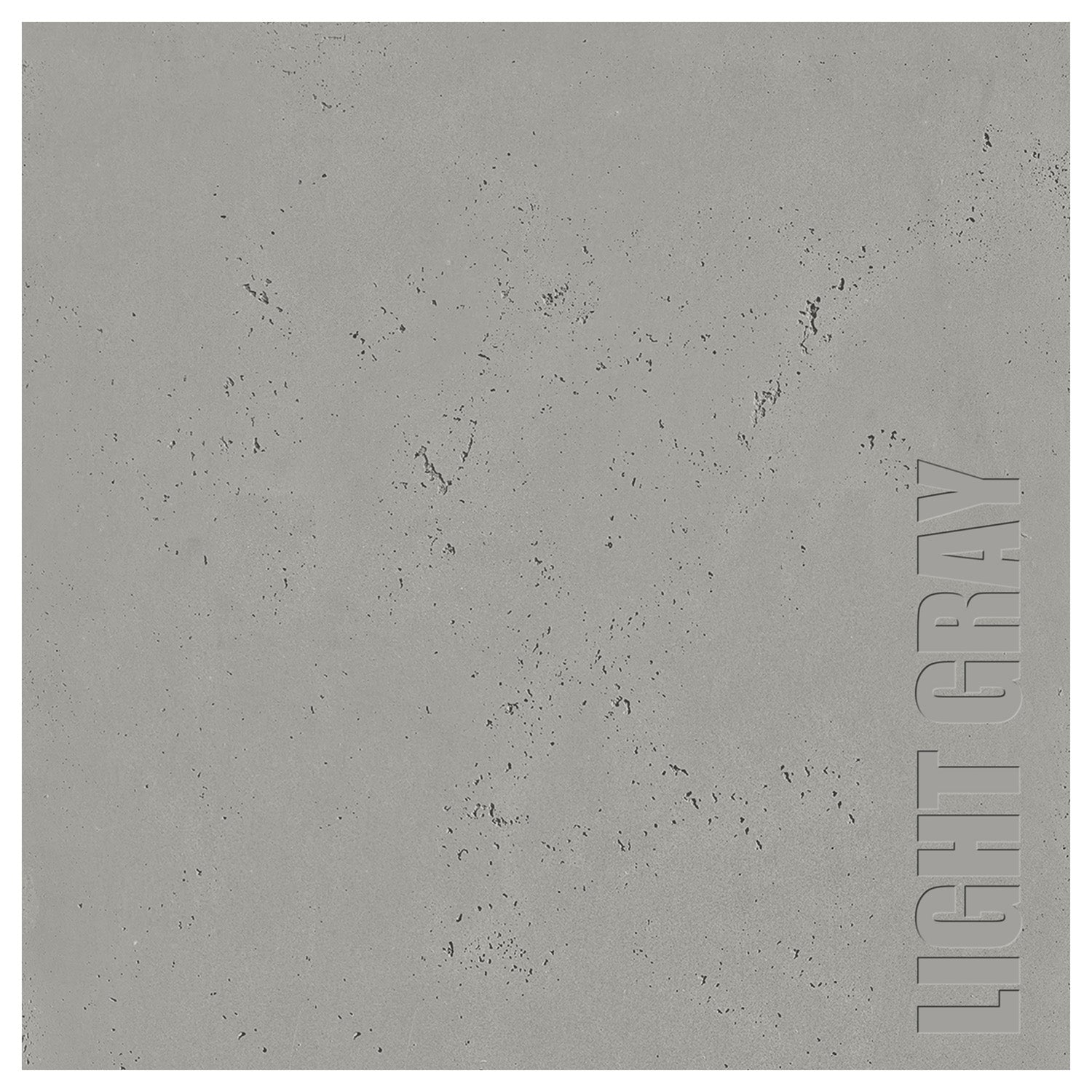

Cast with high-strength concrete, it has an authentic concrete texture.
Fire resistance consists of determining the amount of time during which a concrete panel will fulfil its function under the effects of a fire. A specific rating is assigned based on the results of the various associated tests. > Euroclass B-s1, d0 fire rating - USA: ASTM E84 - Class A/ Smoke index: 0 / Flame spread index : 0 - CANADA: CAN UL 102
Carefully crafted to complement your unique way of being you, we strive to bring a touch of inspiration to your life.
2.8× better thermal insulation than typical concrete.Resistant to frost and heat up to 60°C.

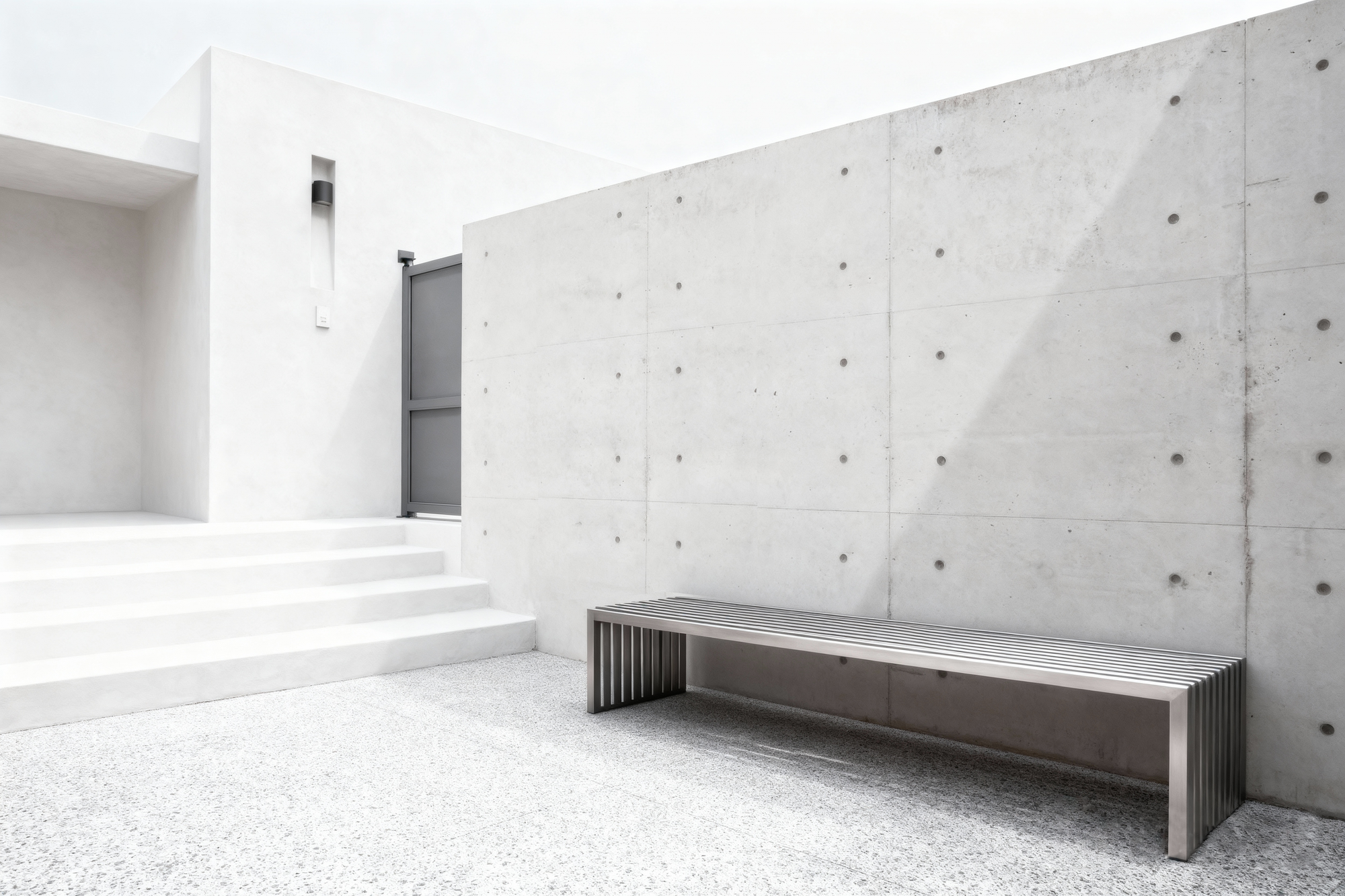

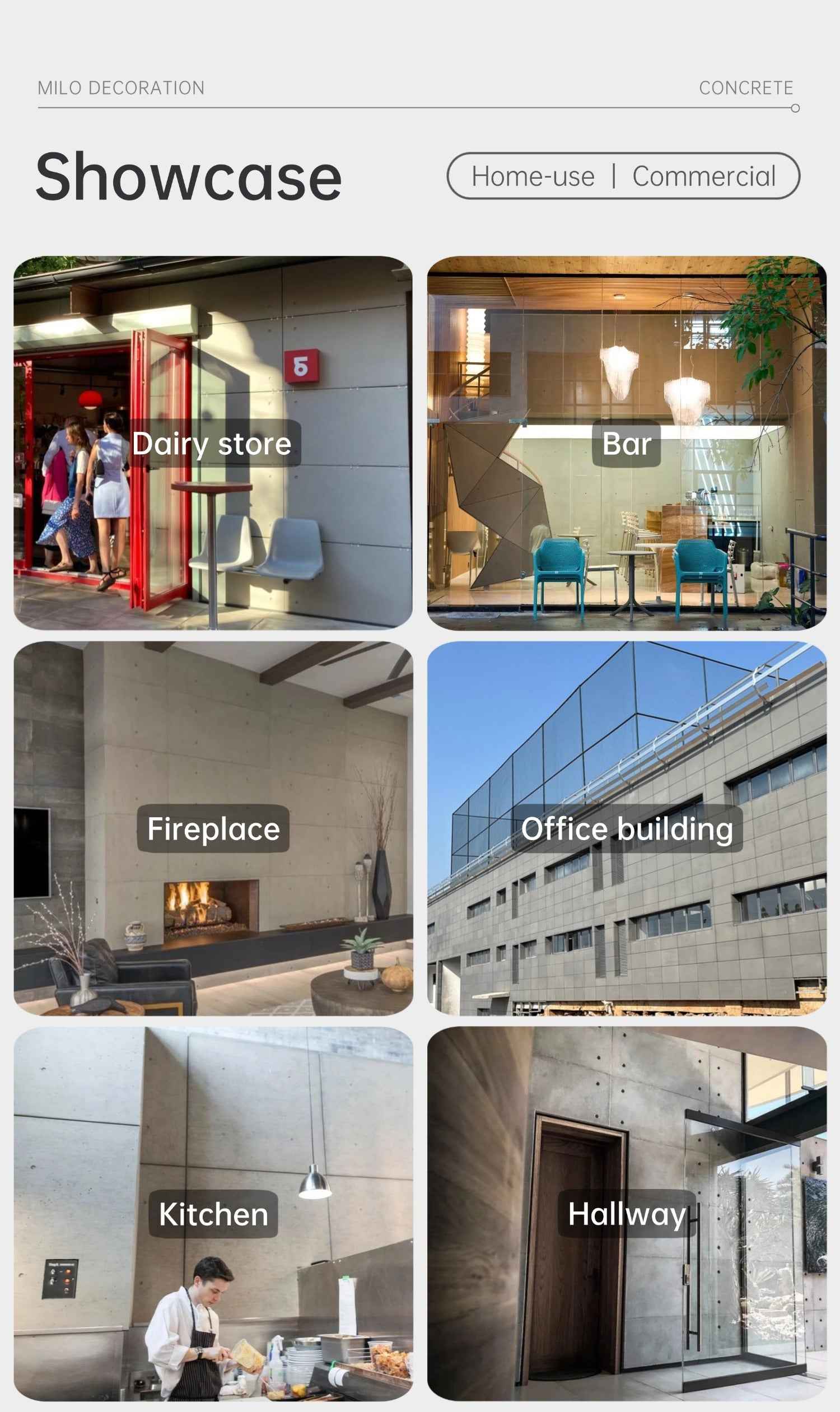

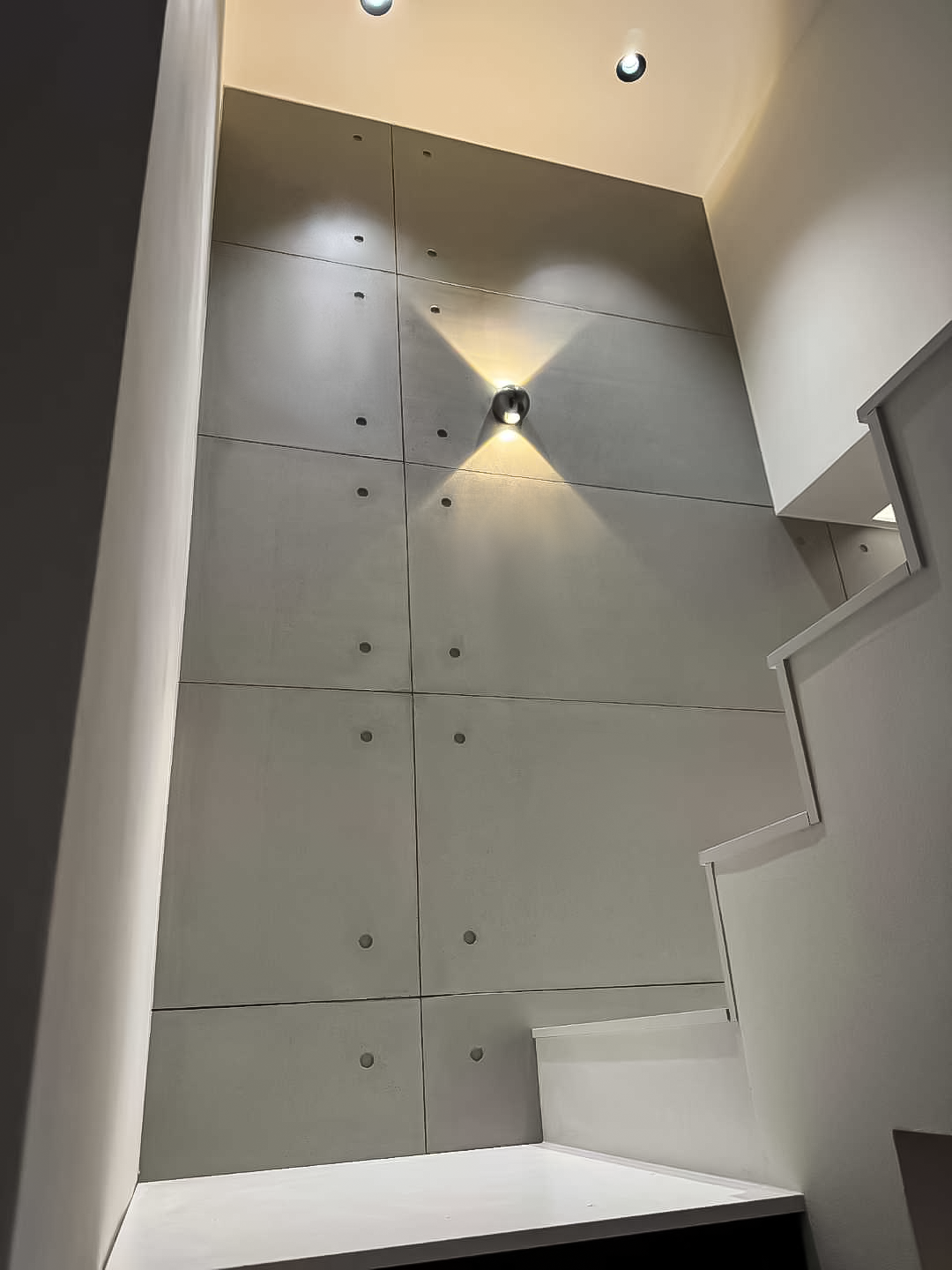

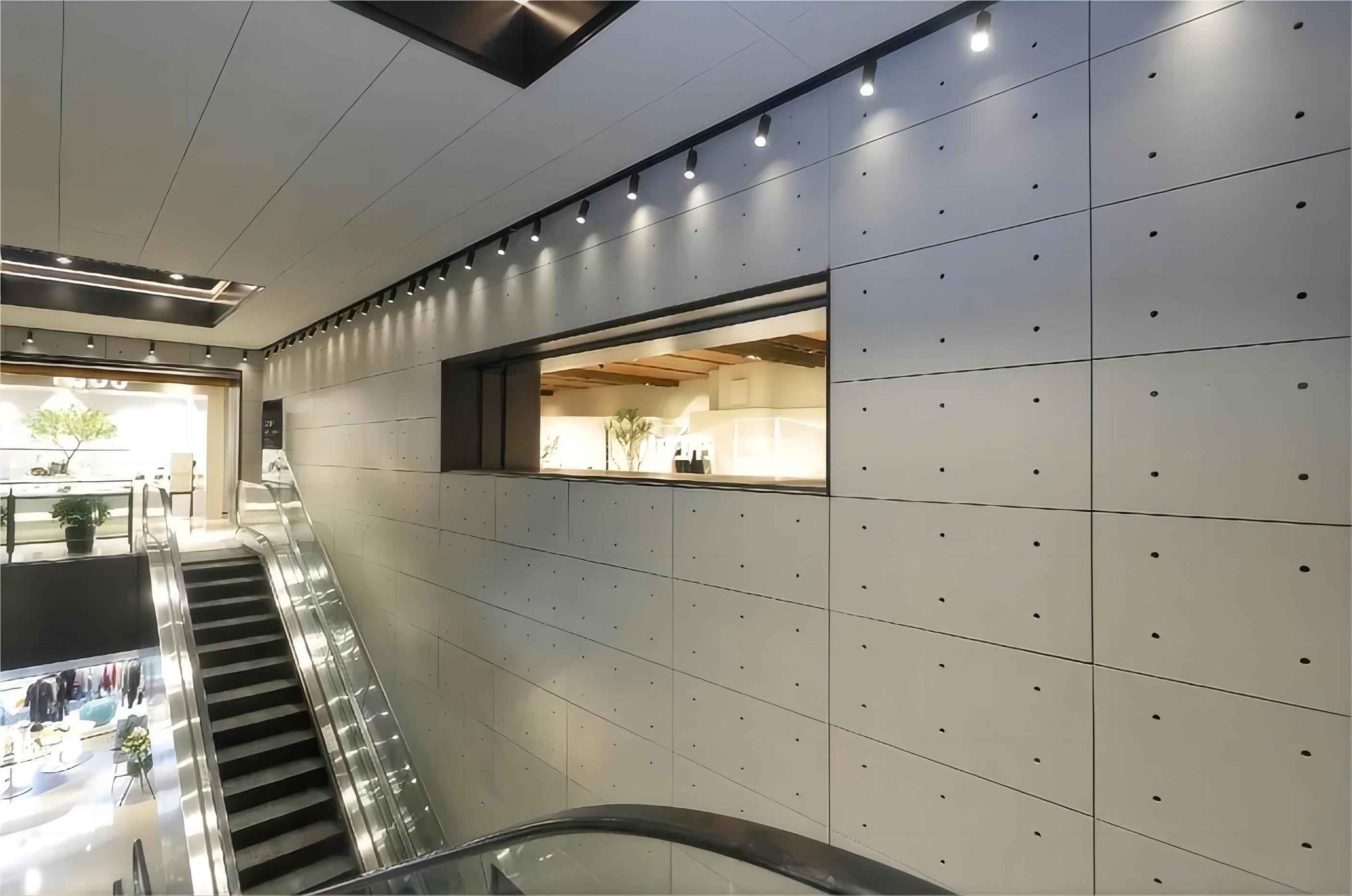

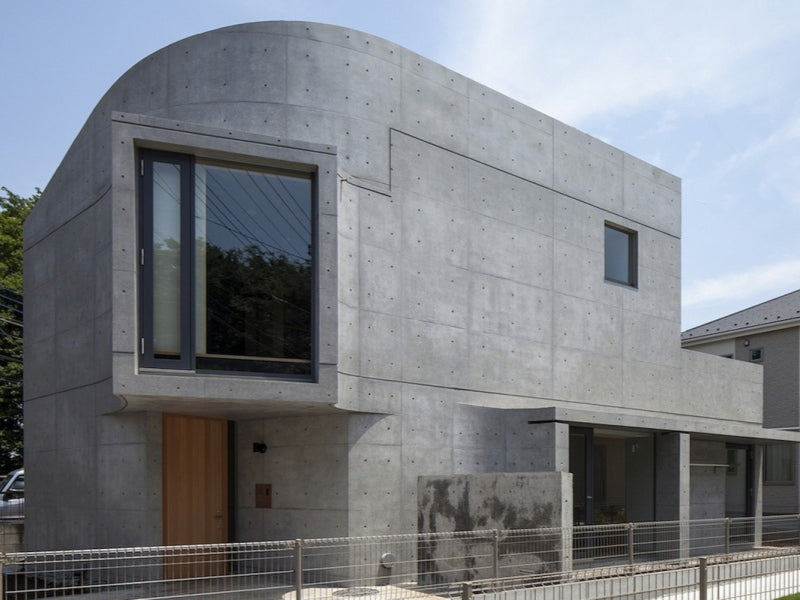

Indoor/Outdoor Support
Surface Seal
Surface sealing prevents deformation or damage due to changes in humidity within the material. In an ideal environment, it can keep working for 30-40 years.
fire resistant
A+ CLS fireproof

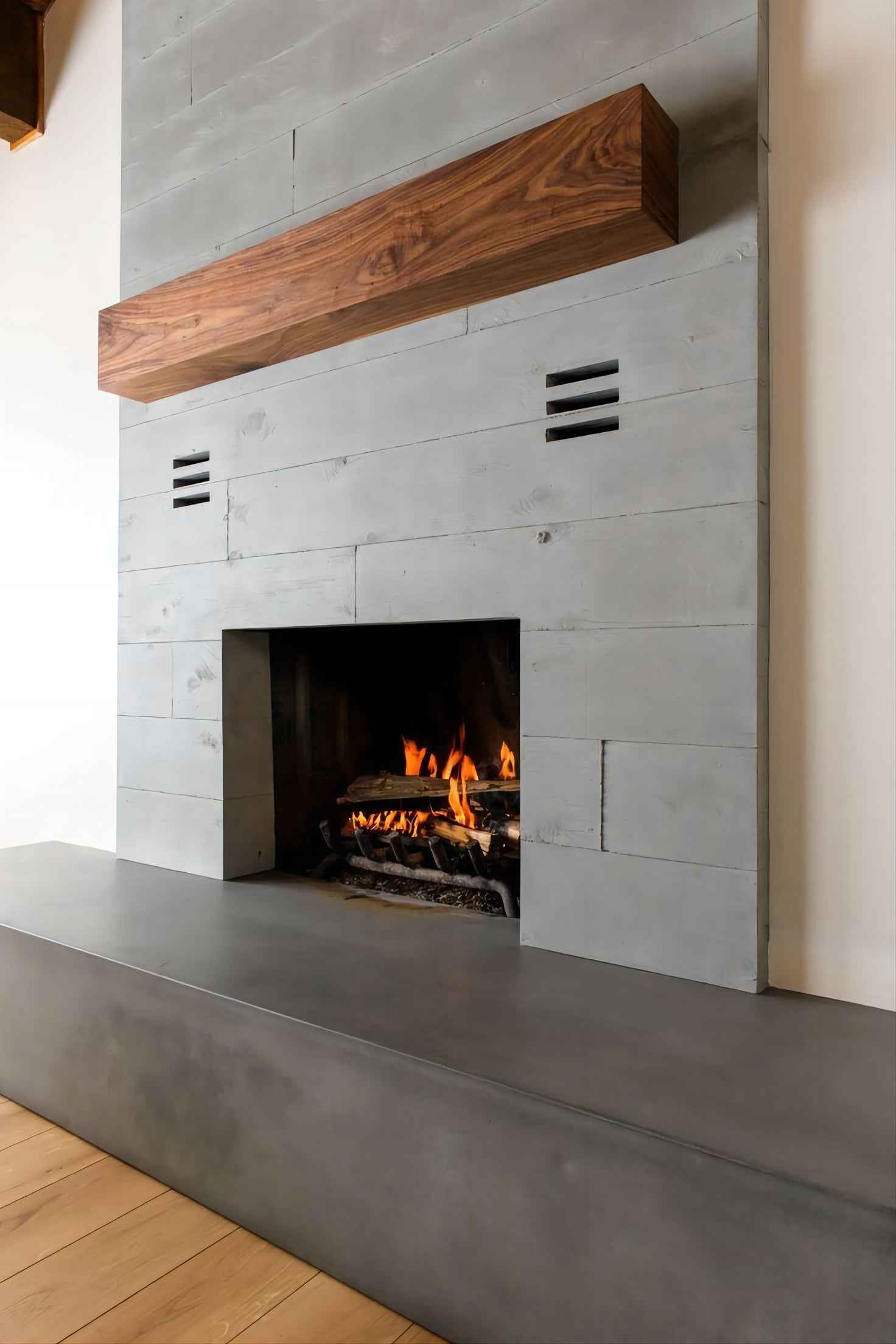

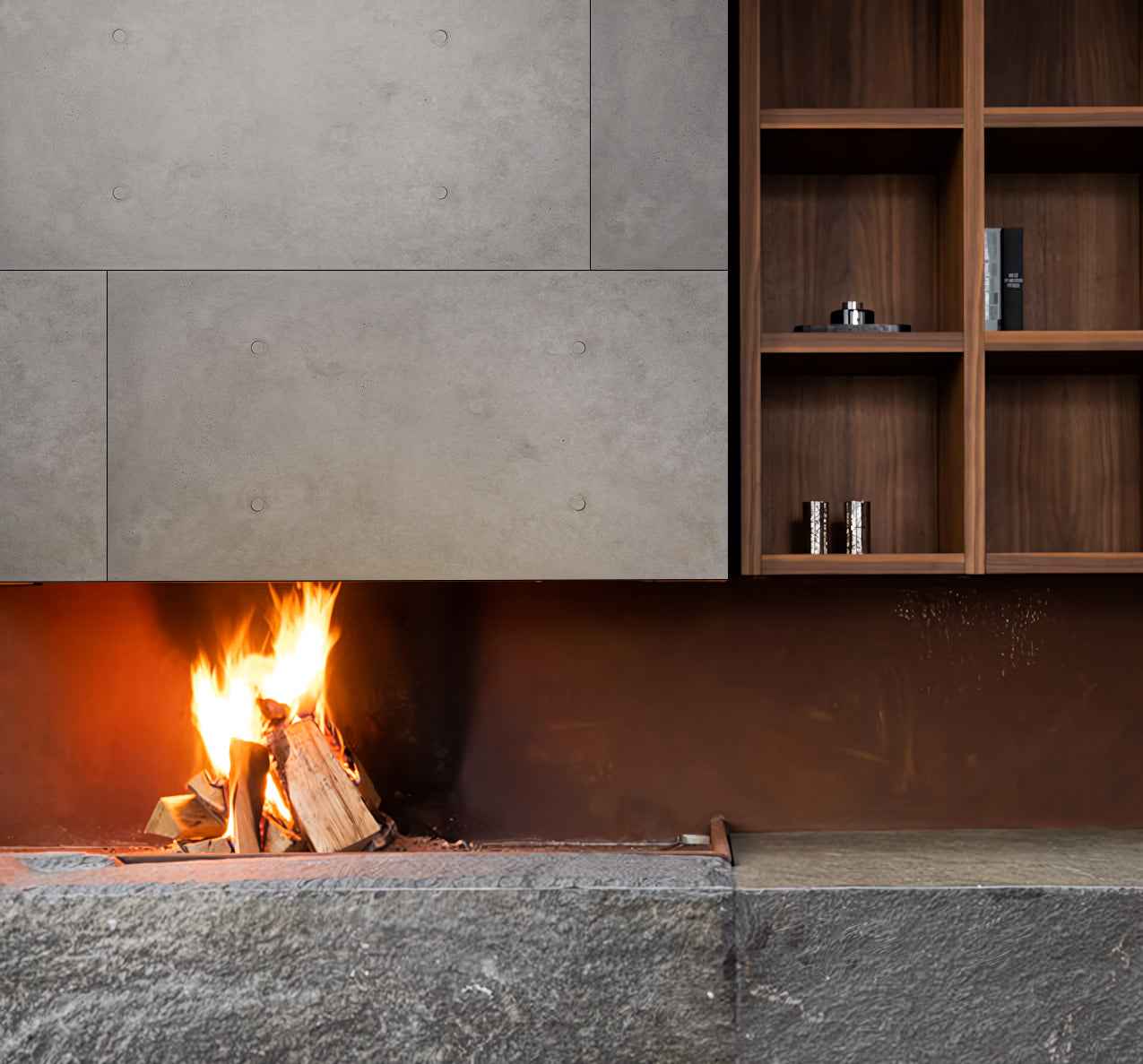

Inorganic materials make them much less likely to produce harmful gases from high temperatures, making them safer for use in fireplaces. And in an emergency, they can buy more time for life.


Length & Width:
600*1200 mm / 24*48 inch
900*900 mm / 36*36 inch
1200*1200 mm / 48*48 inch
1200*2400 mm / 48*96 inch
-
Thickness & Weight:
10mm / 0.4 inch = 21kg per sqm / 2kg per sqft
15mm / 0.6 inch = 32kg per sqm / 3kg per sqft
20mm / 0.8 inch = 44kg per sqm / 4kg per sqft
25mm / 1.0 inch = 54 per sqm / 5kg per sqft
Such on......
Technical parameters
Yield strength (modulus of rupture) | 10-12 MPa |
Tensile strength (modulus of rupture) | 5-8 MPa |
Compressive strength | ≥40 MPa |
Impact strength | 5-10 kJ/㎡ |
Thermal expansion coefficient | 20 * 10-6/℃ |
Absorption | Low water permeability |
Dorry wear | 2.5 mm |
